Industrial RFID
HF RFID for identifying carriers, pallets, and trays at each station. Three readers that differ by housing and read range, and the tags that go with them. Everything runs over IO-Link.
4 readers and tags

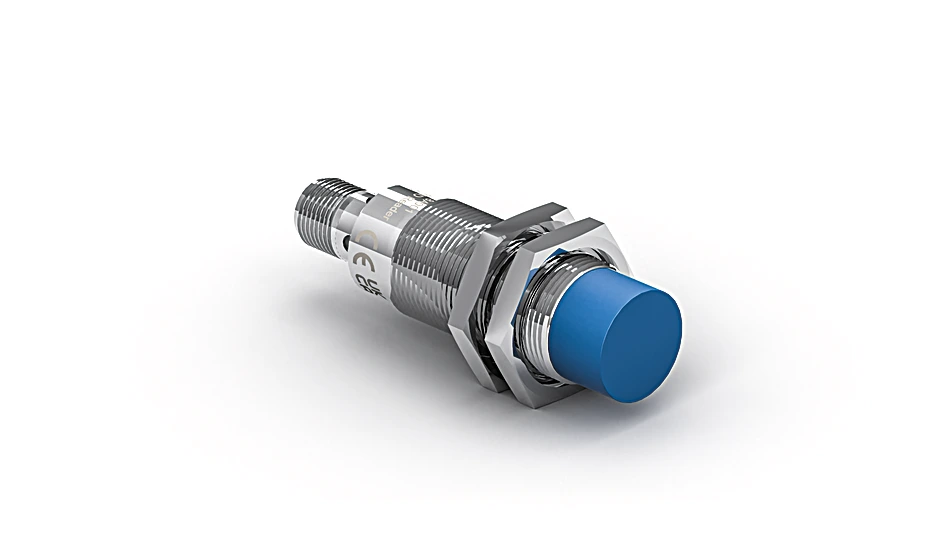

R18A001 Industrial RFID Reader with IO-Link (M18)
Compact M18 RFID reader that reads, compares and writes data on 13.56 MHz transponders at close range, with parameters and process data handled over IO-Link.
Key Specifications:
- Working range 0 to 34 mm (with Ø 50 mm transponder, RSSI ≥ 0)
- 13.56 MHz, ISO/IEC 15693
- M18 × 1 chrome-plated brass housing, PBT sensing face, IP67
- IO-Link 1.1, PNP switching output 200 mA, M12 4-pin, 33 g

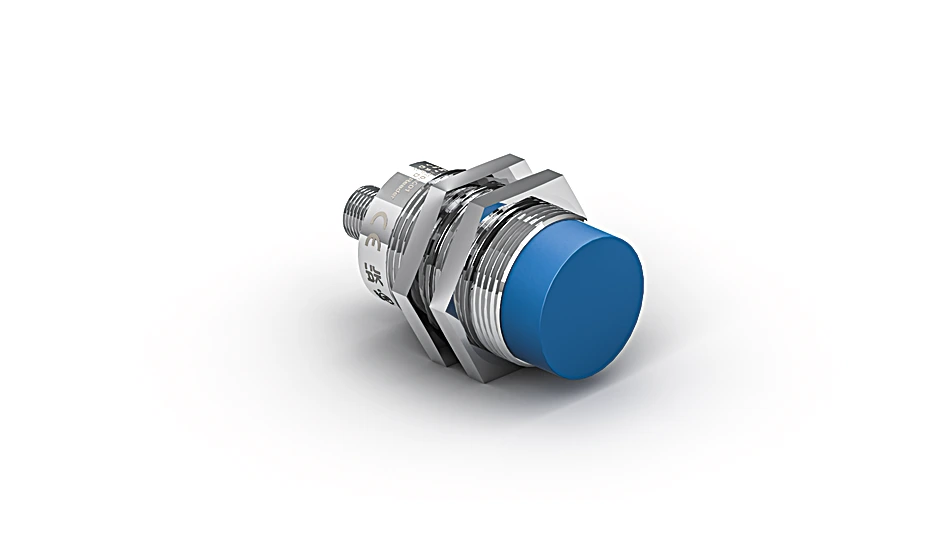

R30A001 Industrial RFID Reader with IO-Link (M30)
M30 RFID reader for close-range read, compare and write operations on 13.56 MHz transponders, with alarm modes and RSSI limits set via IO-Link.
Key Specifications:
- Working range 0 to 50 mm (with Ø 50 mm transponder, RSSI ≥ 0)
- 13.56 MHz, ISO/IEC 15693
- M30 × 1.5 chrome-plated brass housing, IP67
- IO-Link 1.1, PNP switching output 200 mA, M12 4-pin, 84 g

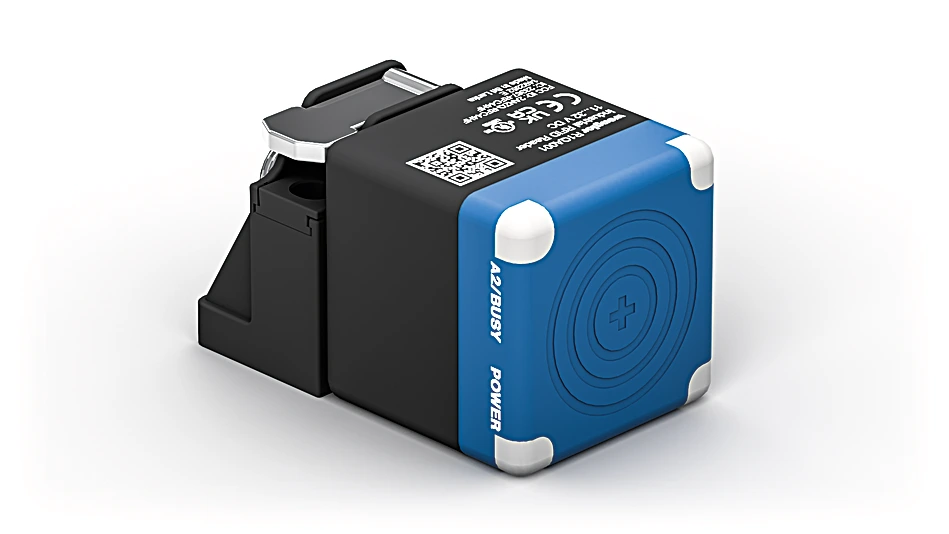

R1QA001 Industrial RFID Reader with IO-Link (cubic)
Cubic plastic-housed RFID reader with the longest range in the line, built for washdown and wet environments, reading and writing 13.56 MHz transponders via IO-Link.
Key Specifications:
- Working range 0 to 78 mm (with Ø 50 mm transponder, RSSI ≥ 0)
- 13.56 MHz, ISO/IEC 15693
- 40 × 40 × 67 mm PBT plastic housing, IP68 / IP69K
- IO-Link 1.1, PNP switching output 200 mA, M12 4-pin, 88 g

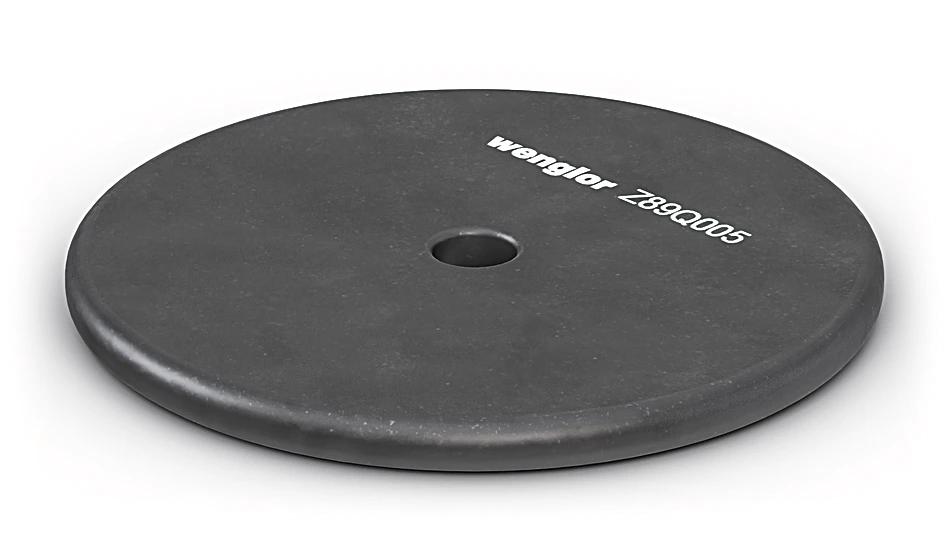

RFID Transponders
Passive 13.56 MHz data carriers powered by the reader's field. Each has a globally unique ID that can be read but not overwritten, plus writable user memory.
Key Specifications:
- Frequency: 13.56 MHz, ISO/IEC 15693
- Memory: 112, 316 or 2,000 bytes
- Sizes: Ø9 mm to Ø50 mm discs
- Up to IP68/IP69K
Not sure which one fits?
Tell us what gets tagged and how close the reader can get. We'll pair a reader and a tag.
